PQWT S500 Water Detector with Multi-Frequency High Accuracy Portable Underground Water Detection
Premium Products
PQWT S500 Water Detector with Multi-Frequency High Accuracy Portable Underground Water Detection
1
2
3
4
5
6
Model Number :PQWT-S500
Brand Name :PQWT
Place of Origin :Hunan, China
MOQ :1
Price :$1,414
Operating Frequency :Multi-Frequency
Measuring Depth :100/150/300/500M
Conversion Range :0mV-1000mV
Measurement Accuracy :0.001mV
Measuring Frequency :Single Band, Triple Band, Multiple Frequency
LCD Size :7 Inch Touch Screen
A/D Conversion :8-bit 1Msps
Input Impedance :≥10MΩ
Power Supply :DC12V 4000mAh Built-in Battery
Weight :<2kg
Resolution :0.001mV
Precision :±2%
Material :Plastic
Packing Size :20x40x46cm
Gross Weight :8.5KG
Contact Now
PQWT-S500 Deep detectorfor sale for further support: +0086 18817127266
Product Advantages : 1. Be suitable for plain, hill, mountain land, highland, basin all kinds of geologic structure application; 2. Automatic mapping in the instrument, get drilling position and depth result at site. 3. Professional user group offers 24 hours after sale service. 4. The average accuracy of more than 90% from user’s feedback. 5. Four languages including English/Spanish/French/Arabic are optional. 6. It is widely used for drinking water, agricultural irrigation water detection. 7. Non-professionals can learn the operation way in 5 minutes. 8. only 1-2 people can operate. 9. Two years warranty.
The Instrument called as (Natural Electric Field Frequency Selection System) geophysical instrument, shortly known as frequency system.
Instrument working on the principle of electrical difference of natural earth magnetic field, the several different frequencies of electromagnetic field changes is the law to study the underground field material changes to solve the Geological problems.
The measurement data is Self-potential, and the unit is millivolt.
Full automatic mapping water finder deep portable measuring instruments water detector
Main Features
1. High Speed and High Efficiency Complete more than 8000 meters profile measurement in one day to realize geological abnormality in different depth, the prospecting speed and efficiency are improved about 10 times more than traditional resistivity method.
2. Easy to Carry Without the heavy power supply, it uses low-frequency signals in earth natural electric field as the signal source, and the complete set weight is less than 2kg so easy to carry
3. Simple Operation Equipment is automatically controlled by the micro PC. You can learn its operation in 10 minutes. It will take 0.5h for persons without prospecting experience to finish training.
4. Good Accuracy, High Accuracy The resolution of the measurement is up to 0.001mV, and precision is ±2%.
It gains high stability and abnormity curves matching with that of traditional geo-electrical equipment in lots of field survey.
5. Anti-interference Ability It has advanced anti-jamming technology and multiple anti-jamming designs. You can observe abnormity curves result with good repetition even in the weak signal area, city, high electric jamming area and working area with other exterior interference via frequency selector and digital processing.
6.A key to mapping The detector is fully automatic form mapping after sampling data no need the computer drawing mapping

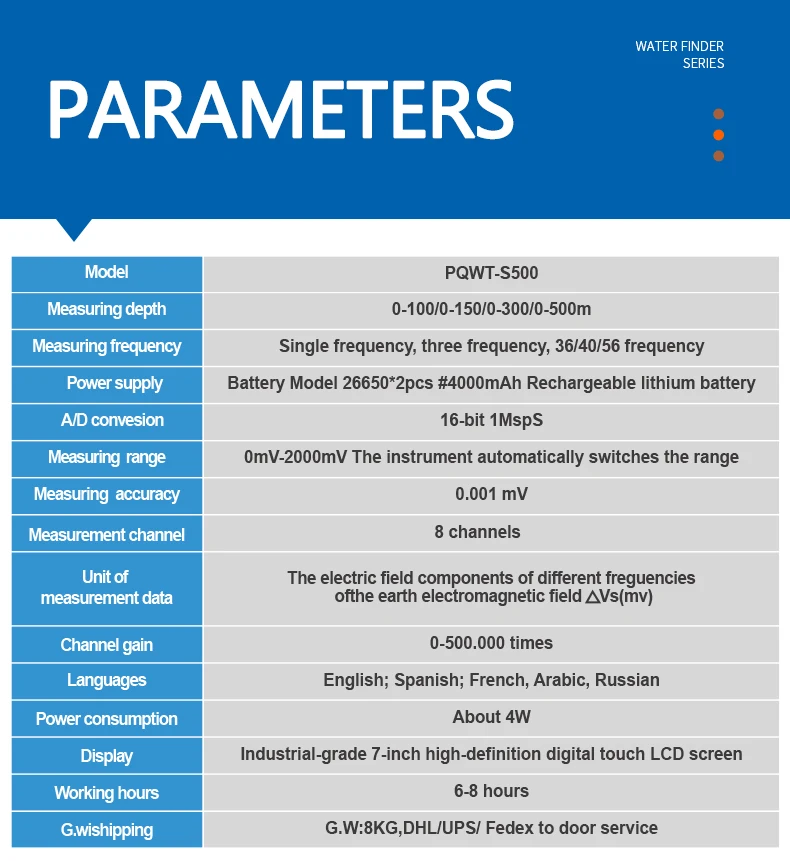

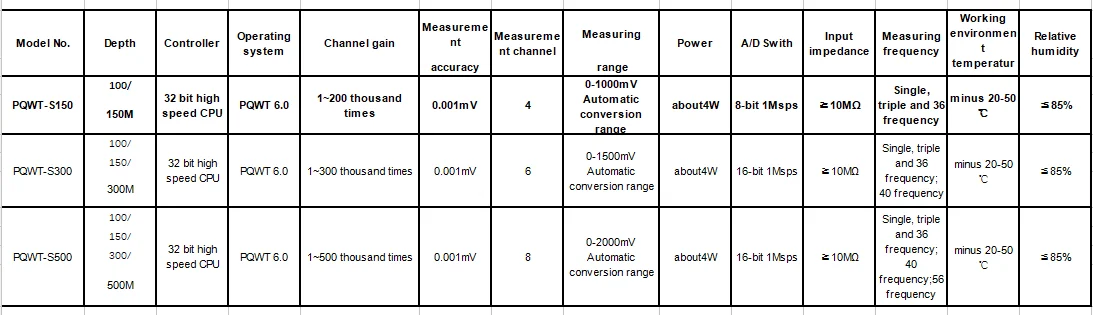

Technical Parameters
Product Picture
Buyer Feedback
PQWT-S500 outside high water detector for sale/whatsapp008618817127266
Company Information
About us
Hunan Puqi Geologic Exploration Equipment Institute is a professional institution in China who engaged in the R & D, manufacturing and sales of pipe water leak detector, leakage automatic analyzer, geophysical prospecting underground water detector, cavity detector, mine locator, dam piping detector, Borehole inspection camera.
www.pqwtcs.com
PQWT-s500 water detector for sale/whatsapp008618817127266
Packaging & Shipping
Packing
1set/Aluminum box into Carton
Packing Size (LxWxH): 20x40x46cm
G.W: 8.5KG
Shipping
Shipping way: DHL/ UPS / FedEx / EMS
Shipping time:3-7 Days by Air. 3-7 Days by Express. 20-60 Days by Ship.
Payment Method
T/T, L/C, Western Union, PayPal
PQWT-S500 water detector without alarm for sale/whatsapp008618817127266
and we will send you the detailed operation manual via email.
The detector directly mapping with one button, no need computer drawing mapping.
The professional geologist gives the suggestions and 24hours online. Guide for After-sale Service
> 2-year guarantee-if using of the product is influenced due to the quality problem, you may receive the guarantee of the product at the service network within 2 year after the date of purchase; >Lifetime maintenance-lifetime maintenance service is implemented on all factory series products. We offer maintenance of machine which surpasses the maintenance period or has manual damage with material and lab
